Our CNC machining expertise enables the production of tight-tolerance, high-precision metal and plastic components across complex geometries and challenging materials—engineered to meet the most demanding performance standards.
CNC Machining Capabilities
"*" indicates required fields
Precision CNC Machining for Complex, High-Performance Components

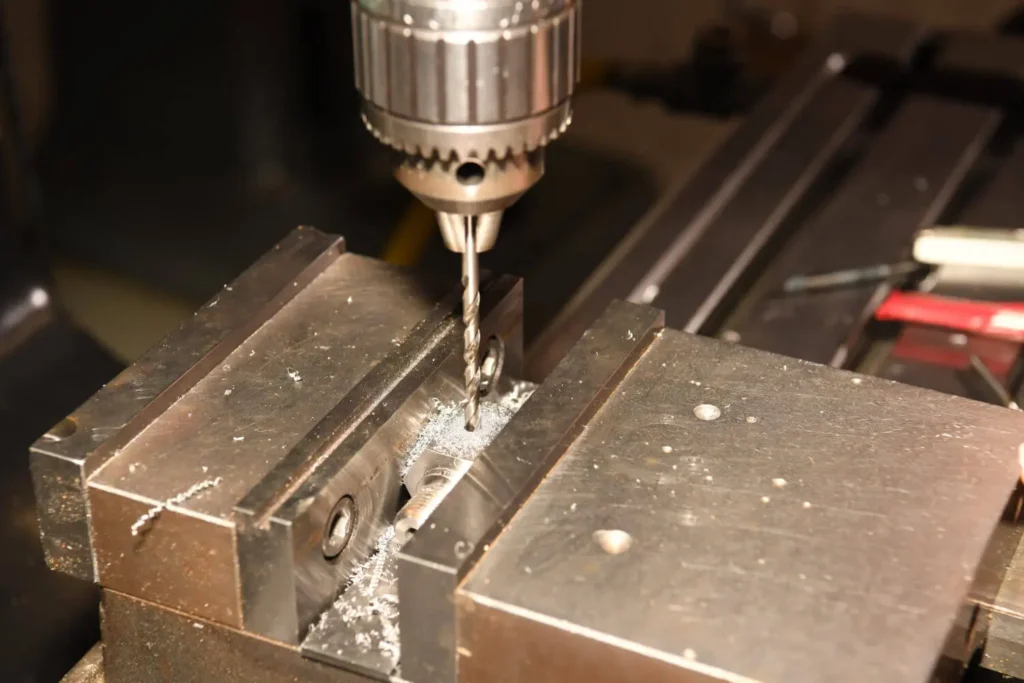

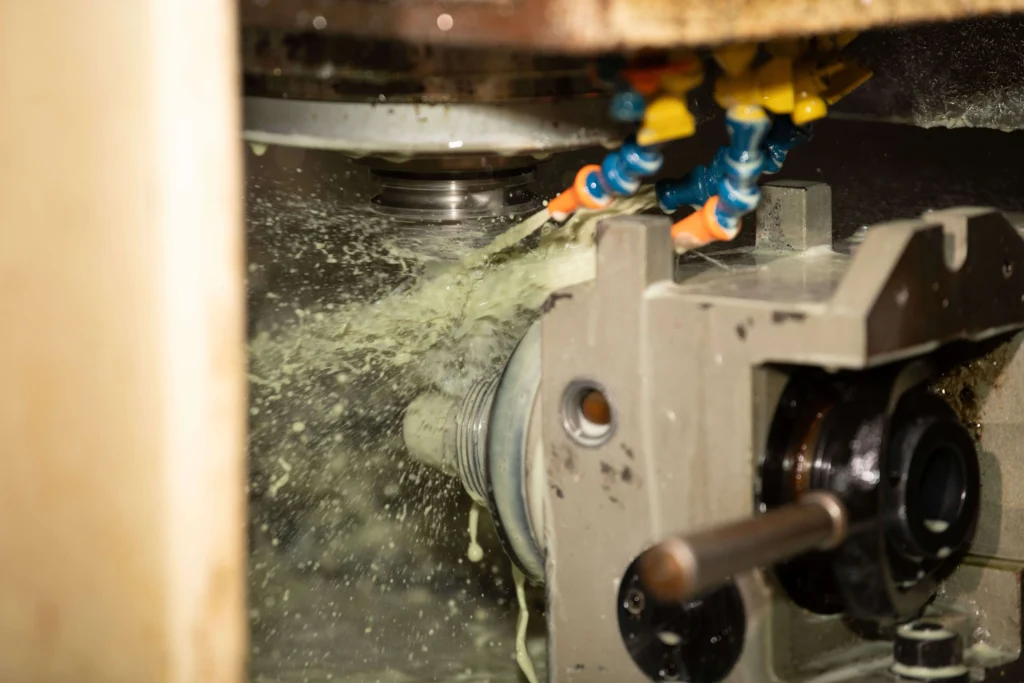

PrecisionX Group utilizes 5-Axis Vertical CNC milling machines to manufacture custom precision components with dimensions up to 31.5” in length, 17.7” in width, and 21.3” in height. In addition to milling and drilling, PrecisionX can perform advanced operations such as knurling, counterboring, and threading, enabling the creation of complex geometries and multifaceted structures with tolerances as tight as ±0.0005”. Our CNC machines support both high and low volume orders, meeting stringent tolerance and lead time requirements while maintaining competitive pricing.
Typical products include housings and packages for industries such as hermetic sealing, telecommunications, semiconductors, aerospace, military, and defense.
Additionally, PrecisionX uses CNC machines to add intricate features to custom parts after processes like metal stamping or Swiss screw machining, ensuring precision and versatility in final component designs.
Unique size and tolerance capabilities.
Our precision CNC machining capabilities at PrecisionX are tailored to deliver unique sizes and extremely tight tolerances for even the most demanding applications. With advanced machinery and skilled technicians, we achieve intricate details and precise dimensions that meet rigorous specifications. This capability allows us to handle complex geometries and customized sizes, ensuring that every component is produced with exacting accuracy. Our focus on precision and quality enables us to meet the high standards required across industries, providing reliable, high-performance parts for critical applications.
CNC MILLING CAPABILITIES
| 3-Axis with Trunnion | 5-Axis High-Precision | 3-Axis with Rotary | |
| 3 Axis Work Envelope (in) | 64″ x 32″ x 30″ (X, Y, Z) | N/A | 19.68″ x 15.74″ x 12.9″ (X, Y, Z) |
| Max Part Weight (lb.) | 2,000 | N/A | 660 |
| 5 Axis Work Envelope (in.) | 19″ x 18″ (Dia, Length) | 7.87″ x 6.2″ (Dia, Length) | 11″ x 14″ (Dia, Length) |
| Max Part Weight (lb.) | 200 | 33 | 220 |
| Spindle RPM (min-1) | 12,000 | 40,000 | 10,000 |
| Spindle Power (HP) | 30 (Cont.) | 10 (Cont.) | 15, 5 (Peak, Cont.) |
| Spindle Torque (ft-lb) | 22.4 (Cont.) | 1.3 (Cont.) | 39 (Peak) |
| Surface Finish Min (Ra) | 12 | <1 | 2 |
| Accuracy (in.) | 0.0001 | 0.00002 | 0.0002 |
| Repeatability (in.) | 0.0001 | 0.00002 | 0.000078 |

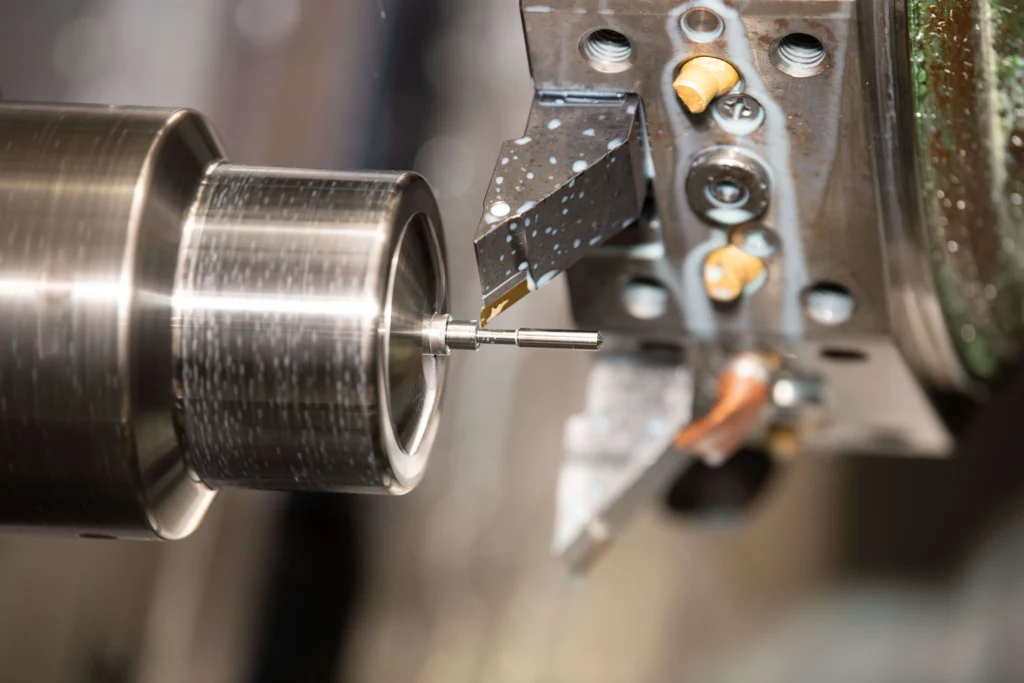

CNC TURNING CAPABILITIES
| Work Envelope (in.) | 14.17″ x 23.6″ (Dia, Length) |
| Main Spindle RPM (min-1) | 3,500 |
| Main Spindle Power (HP) | 30, 25 (Peak, Cont.) |
| Main Spindle Torque (ft-lb) | 369, 310 (Peak, Cont.) |
| Sub Spindle RPM (min-1) | 5,000 |
| Sub Spindle Power (HP) | 20, 15 (Peak, Cont.) |
| Sub Spindle Torque (ft-lb) | 92, 51 (Peak, Cont.) |
| Live Tool Spindle RPM (min-1) | 6,000 |
| Live Tool Spindle Power (HP) | 10, 5 (Peak, Cont.) |
| Live Tool Spindle Torque (ft-lb) | 30, 13 (Peak, Cont.) |
Our Process
01
We discuss your part needs, performance requirements, and help choose the right material.
02
Our team designs and builds custom tooling in-house to ensure precision and speed.
03
We form or machine your parts using methods like deep drawing, stamping, CNC, or EDM.
04
Tight tolerances are checked throughout production using advanced inspection tools
05
Tight tolerances are checked throughout production using advanced inspection tools.
06
We handle heat treating, finishing, part marking, and assemble components as needed.
